Anti-static Elastic Wrist Strap

Short Description:

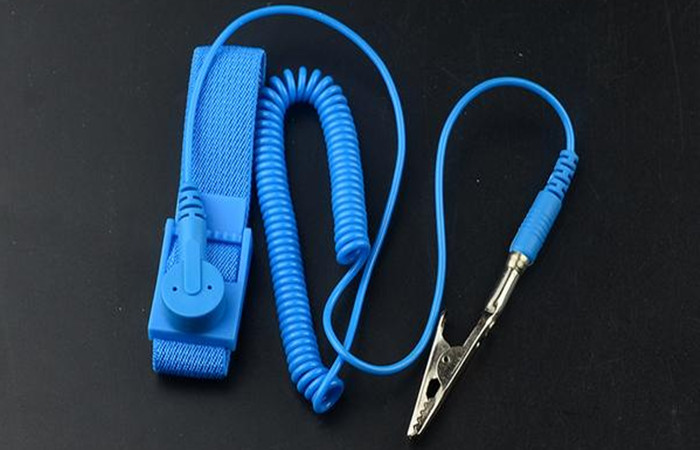

This product is an anti-static wrist strap with a buckle adjustment and wired type. It can effectively protect electronic components from static electricity interference by discharging static electricity from the human body. It consists of an anti-static elastic band, movable snap, spring cord, protective resistor, and clip. The inner layer of the elastic band is woven with anti-static yarn, while the outer layer is woven with regular yarn. The principle of a wired anti-static wrist strap is to conduct static electricity from the human body to the ground through the wrist strap and grounding wire. During use, the wrist strap should be in contact with the skin, and the grounding wire must be directly connected to the ground to achieve maximum effectiveness. Wearing this anti-static wrist strap can safely remove static electricity generated in the human body within 0.1 seconds. A grounded wrist strap is the most basic and widely used anti-static equipment.


Product Detail

Product Tags

Features & Benefits:

The product has a snap button on the outer side of the plastic block. This snap button passes through the plastic block via a metal connector and is connected to the conductive tape on the inner side of the plastic block, forming two independent electrical circuits. The plastic block is divided into left and right parts, which are hinged together. The snap buttons on the outer sides of the two plastic blocks are connected to their respective grounding terminal buttons. Compared with conventional wristbands, this product allows one circuit to continue working even if the other circuit fails without the wearer noticing, reducing the probability of electronic component insulation breakdown due to static electricity, preventing mass product scrap or quality deterioration, lowering usage costs, and extending the lifespan of the wristband. It is suitable for high-end customers.

Applications:

Product name Material Color Wire Diameter Wearing state resistance Friction voltage Grounding Resistance Packing Wire length PLug
  Anti-static wrist strap  PU rubber/Nylon/Conductive Fiber  Can be Custom made 2.4mm   1.1 - 1.3 * 10^6 Ω  < 100V 0.06 * 10^6 Ω  Protected bag   2M-5M One buckle one clip or doulble buckles
419f7e9877954a11b1ea77ba8839428e_2
